Defect Danger Zone: For Lithium Metal, Smaller is Stronger

The formation of lithium dendrites is even now a mystery, but products engineers study
the disorders that help dendrites and how to stop them.

Historically, as in decades back, rechargeable lithium metallic batteries have been risky.
These batteries have been quickly abandoned in favor of Li-ion batteries which contain
no metallic lithium and are now greatly utilized. In attempts to continue to generate strength
density up and expenses down, we are all over again exploring how to competently and securely use
lithium metallic in batteries. Strong state batteries, absolutely free of flammable liquids, could
be the answer.  Nevertheless, progress has been slowed for the reason that lithium metallic even now finds
a way to limited circuit the battery and restrict cycle everyday living.

Strong-state lithium batteries are the Holy Grail of strength storage. With opportunity
impacts on almost everything from particular cellular units to industrial renewable strength,
the challenges are value beating. The target: Construct a safe and extensive lived lithium battery. The obstacle: Use a solid-state electrolyte and stop limited circuiting from the formation
and expansion of lithium dendrites.

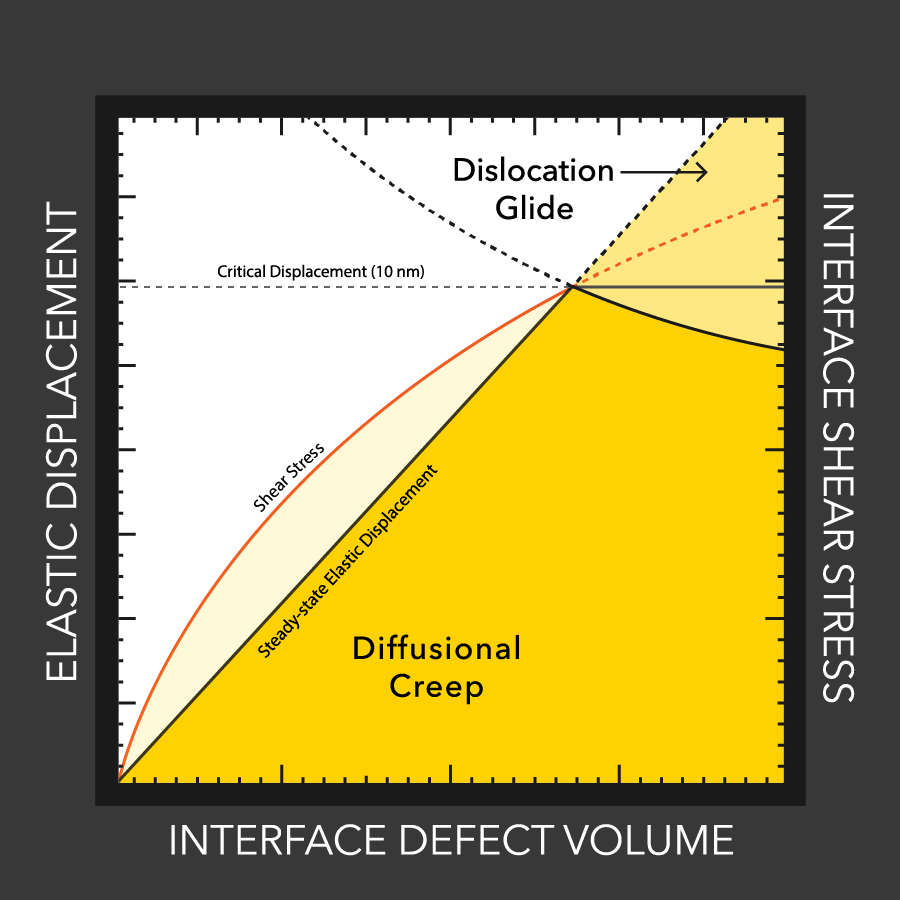

GIF showing red
Among diffusional creep and dislocation glide, the competition for anxiety aid identifies the important interface defect size
scale, the defect danger zone, that is most very likely to lead to gadget failure by enabling
the formation & expansion of lithium dendrites originating at the interface concerning the
lithium anode and solid electrolyte separator.

In a new invited aspect paper published in the Journal of Components Investigate, products engineers from Michigan Technological University weigh in on the problem.
Their take is an abnormal just one. They focus on the special mechanics of lithium at dimensions
that are a fraction of the diameter of the hair on your head — considerably smaller sized scales
than most some others look at.

“People consider of lithium as getting tender as butter, so how can it probably have the
power to penetrate through a ceramic solid electrolyte separator?” requested Erik Herbert,
assistant professor of products science and engineering at Michigan Tech and just one of the study’s sales opportunities. He states the response is not intuitive
— smaller sized is stronger. Small actual physical flaws like micro cracks, pores or floor roughness
inevitably exist at the interface concerning a lithium anode and a solid electrolyte
separator. Zooming in on the mechanics of lithium metallic at size scales commensurate
with individuals little interface flaws, it turns out that lithium is considerably stronger than
it is at macroscopic or bulk size scales.

“Lithium doesn’t like anxiety any more than you or I like anxiety, so it is just seeking
to determine out how to make the tension go absent,” Herbert reported. “What we’re expressing
is that at compact size scales, where the lithium is not very likely to have entry to
the typical system it would use ease tension, it has to count on other, much less
successful techniques to ease the anxiety.”

In each and every crystalline metallic like lithium, atomic amount flaws termed dislocations
are wanted to ease sizeable quantities of anxiety. At macroscopic or bulk size
scales, dislocations get rid of anxiety competently for the reason that they allow adjacent planes
of atoms to very easily slide previous just one another like a deck of playing cards. Nevertheless, at compact
size scales and higher temperatures relative to the metal’s melting position, the possibility
of acquiring dislocations inside the stressed volume is pretty low. Beneath these disorders,
the metallic has to discover another way to ease the tension. For lithium, that suggests
switching to diffusion. The anxiety pushes lithium atoms absent from the stressed volume
– akin to getting carried absent on an atomic airport walkway. In comparison to dislocation
movement, diffusion is pretty inefficient. That suggests at compact size scales, where diffusion
controls anxiety aid relatively than dislocation movement, lithium can support more than
100 times more anxiety or tension than it can at macroscopic size scales.

Catastrophic troubles could come about in what Herbert and his co-lead, MTU professor Stephen
Hackney, call the defect danger zone. The zone is a window of actual physical defect dimensions
described by the anxiety aid competition concerning diffusion and dislocation movement.
The worst-scenario circumstance is a actual physical interface defect (a micro crack, pore or floor
roughness) that is much too large for successful anxiety aid by diffusion but much too compact
to help anxiety aid by dislocation movement. In this reverse Goldilocks problem,
higher stresses inside the lithium can lead to the solid electrolyte and the full battery
to catastrophically fall short. Curiously, the danger zone dimension is the similar dimension as
the noticed lithium dendrites.

“The pretty thin solid-state electrolytes and higher present-day densities demanded to provide
the battery electric power and limited charging times predicted by people are disorders that
favor lithium dendrite failure, so the dendrite problem need to be solved for the technology
to progress,” Hackney reported. “But to make the solid-state technology feasible, the electric power
capability and cycle everyday living limits need to be resolved. Of training course, the initially phase
in solving the problem is to have an understanding of the root lead to, which is what we are seeking
to do with this present-day do the job.”

Hackney factors out that the smaller sized is stronger thought is not new. Components engineers
have researched size scale outcome on mechanical conduct since the fifties, while it
has not been greatly utilized in thinking of the lithium dendrite and solid electrolyte

“We consider this ‘smaller is stronger’ paradigm is right relevant to the noticed
lithium dendrite dimension, and is confirmed by our experiments on pretty clean up, thick Li
movies at strain charges pertinent to the initiation of the dendrite instability in the course of
charging,” Hackney reported.

To rigorously look at their speculation, Herbert and Hackney carry out nanoindentation
experiments in higher purity lithium movies that are created by a best battery researcher,
Nancy Dudney of the Oak Ridge National Laboratory.

“The bulk attributes of lithium metallic are very well characterized, but this could not be
pertinent at the scale of flaws and inhomogeneous present-day distributions very likely acting
in pretty thin solid state batteries,” Dudney reported. “The product presented in this paper
is the initially to map disorders where the considerably stronger lithium will influence cyclelife
effectiveness.  This will information potential investigation of solid electrolytes and battery

Among the team’s future actions, they plan to look at the effects of temperature and electrochemical
biking on the mechanical conduct of lithium at compact size scales. This will assist
them superior have an understanding of real-entire world disorders and strategies to make future-era
batteries immune to the formation and expansion of lithium dendrites.

Grants and Funding

DOE Workplace of Energy Efficiency and Renewable Energy’s State-of-the-art Battery Components
Investigate application TARDEC
